Event Collector Workflow

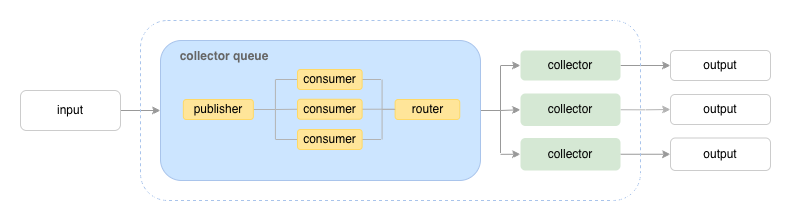

The following is a block diagram of the event collector lifecycle:

Input is any source of event data – this could be an an upstream application, an API endpoint, an MQTT broker delivering subscribed messages, etc.

Output is any endpoint, service, or a persistent storage – anything you want to send you event payloads to downsteam

The event collector stage consist of:

• a collector queue running consumers that listen for event payloads from the input;

• a router that sends event payloads from consumers to collectors depending on the delivery mode;

• one or more collector objects that process the event payloads and sends them to the output.

The event-collector library provides a publisher-consumer queue and a set of data structures to build the middleware layer between your input source and your output services.

Event Collector Setup Overview

Below is a walkthrough of the various event collector components explaining how the library supports different use cases. We’ll start from the “output” end and work our way backwards towards the “input.”

A. Defining Collectors

For each data processing workflow, you need to create a Collector object. The collector’s responsibility is to take input event payloads, process them, and send them to the output. The Collector requires a Processor function, and a unique key to associate with the function so the collector queue can route event payloads to their destination. You can create as many collectors as your workflow requires. The collector queue will route input event payloads to these collectors according to the delivery method you use (more details on this below, see C. “Creating Payloads & Specifying Delivery”).

A minimal processor function looks like:

from event_collector import Context, Ok, Payload, Result

async def event_handler(payload: Payload, ctx: Context) -> Result:
    """Process event payload and prepare result."""
    ...
    return Ok(result)

To create a Collector instance, supply the key and processor as parameters:

from event_collector import Collector

key = "demo-collector"
collector = Collector(key, event_handler)

The signature for a Processor, which is the event handler, is:

type Processor = Callable[[Payload, Context], Awaitable[Result]]

A Payload is a wrapper for the event payload value. It also carries metadata on how to deliver the payload to collectors. We’ll go over payload details more below (see C. “Creating Payloads & Specifying Delivery”).

A Context is a container to store objects and values for the collector it’s attached to. Each Collector automatically creates an empty Context object. You can also create your own Context and pass it in the ctx parameter when you initialize the Collector. For example:

key = "demo-collector"
ctx = Context()
ctx.config_value = os.getenv("CONFIG_VALUE")

collector = Collector(
    key,
    event_handler,
    lifecycle=lifecycle,
    ctx=ctx,
)

The Collector also accepts a topics parameter (a list of str) that specifies the list of topics the collector listens to. Like the collector “key,” topics are used for routing. (See C. “Creating Payloads & Specifying Delivery” below).

If your collector requires initialization, such as when you are writing to a database backend and need to store a “repository” object for the collector to access, you can create a LifecycleManager:

from contextlib import asynccontextmanager

from event_collector import Collector, Context, Payload, Result

from your_application import event_handler, SensorDataRepository

@asynccontextmanager
async def lifecycle(ctx: Context) -> None:
    """Perform setup and shutdown steps for collector."""
    try:
        ctx.repository = SensorDataRepository()
        ctx.repository.setup()
        yield
    finally:
        ctx.repository.shutdown()


 # Create Collector
 key = "demo-collector"
 topics = ["sensor-data", "temperature"]
 collector = Collector(key, event_handler, lifecycle=lifecycle, topics=topics)

B. Configuring the CollectorQueue

A minimal CollectorQueue only requires:

• adding a collectors list to parameters (note: collectors must be a list of Collector instances);

• setting min_consumers and max_consumers.

The simplest way to run the collector queue is to use the CollectorQueue instance as an async context manager:

from event_collector import Collector, CollectorQueue

from your_application import event_handler

collector = Collector(key, event_handler)
collectors = [collector]
min_consumers = 1
max_consumers = 1000

collector_queue = CollectorQueue(
    collectors,
    min_consumers=min_consumers,
    max_consumers=max_consumers,
)

async with collector_queue:
    publisher = collector_queue.get_publisher()

Once you’ve created the collector queue and it is running, use the EventPublisher send method to send event payloads to the collector queue.

You can also run the collector queue by calling its initialization and shutdown methods manually:

try:
    collector = Collector(key, event_handler)
    collectors = [collector]
    min_consumers = 1
    max_consumers = 1000

    # Create and initialize collector queue
    collector_queue = Collector_Queue(
        collectors,
        min_consumers=min_consumers,
        max_consumers=max_consumers,
    )
    await collector_queue.init_queue()

    # Get the EventPublisher to send events
    publisher = collector_queue.get_publisher()
    ...

except Exception as e:
    # Handle any exceptions
    ...

finally:
    # Shut down collector queue
    await collector_queue.shut_down_queue()

C. Sending event payloads

When you have a collector queue running in the background, you can send any input event payloads to the publisher-consumer queue using the EventPublisher from the collector queue.

The collector queue is designed to run as part of a service – for example, a containerized application that listens to input, like an API service, or a subscriber to a message or event queue.

You can integrate the collector queue with your application service by using the CollectorQueue as an async context manager:

from event_collector import CollectorQueue, Payload

def get_collector_queue() -> CollectorQueue:
    collector_queue = CollectorQueue(
        collectors,
        min_consumers=min_consumers,
        max_consumers=max_consumers,
    )
    return collector_queue

...

async def your_app_service() -> None:
    collector_queue = get_collector_queue()

    async with collector_queue:
        publisher = collector_queue.get_publisher()

        while True
            ...

            # use the publisher to send input event payloads to the
            # collector queue
            data = await get_input_event_payload()
            payload = Payload(data)
            publisher.send(payload)

            ...

D. Creating Payloads & Specifying Delivery

When using the EventPublisher to send payloads, you must wrap the payload data in a Payload object. Payload is a container that wraps the value you’re sending to the collector, plus additional metadata that tells the collector queue how to deliver the event payload.

The Payload class defines the following attributes:

class Payload[T]:
    value: T
    delivery: Delivery  # Delivery is an enum of values: BROADCAST, KEY, TOPIC
    keys: list[str]
    topics: list[str]
    priority: int  # if using a priority queue

You can store a value of any type in Payload.value. For our documentation examples, we’re assuming the input event payloads are events or messages that could be serialized and deserialized, so we’re using a dict here for that general use case. delivery, keys, and topics are metadata attributes used by the collector queue’s router to deliver the event payload. The priority value tells the collector queue to send the event payload with the specified priority if you’re using a priority queue (the CollectorQueue must be initialized to use an asyncio.PriorityQueue for this use case – see queue_type).

Here is a simple payload using the default delivery mode (which is “broadcast” to all collectors):

from event_collector import Payload

...

publisher = collector_queue.get_publisher()

payload_data = {
    "data": "payload data",
}
payload = Payload(payload_data)

await publisher.send(payload)

...

To have more fine-grained control over how the payload is delivered, you can set the delivery mode as follows.

Setting the delivery mode

The event payload delivery supports 3 modes (see Delivery), and you can specify the delivery mode when sending the payload:

1. Delivery by direct keys: sending to collectors directly by specifying their identification keys – the collectors with the specified keys must already be initialized by the collector queue:

from event_collector import Delivery, Payload

...

publisher = collector_queue.get_publisher()

payload_data = {
  "data": "payload data",
}
delivery = Delivery.KEY
keys = ["custom-collector"]
payload = Payload(payload_data, delivery=delivery, keys=keys)
await publisher.send(payload)

2. Delivery by topics: sending to collectors by specifying a set of topics – the collectors must define the topics they are listening to:

from event_collector import Delivery, Payload

...

publisher = collector_queue.get_publisher()

payload_data = {
    "data": "payload data",
}
delivery = Delivery.TOPIC
topics = ["sensor-data"]
payload = Payload(payload_data, delivery=delivery, topics=topics)
await publisher.send(payload)

3. Delivery using broadcast mode: sending to all collectors – this is the fanout or broadcast pattern:

from event_collector import Delivery, Payload

...

publisher = collector_queue.get_publisher()

payload_data = {
    "data": "payload data",
}
delivery = Delivery.BROADCAST
payload = Payload(payload_data, delivery=delivery)
await publisher.send(payload)

# or simply

payload_data = {
    "data": "payload data",
}
payload = Payload(payload_data)
await publisher.send(payload)

Based on the payload metadata, the default collector queue router (SimpleRouter) will send the event payload according to the specified mode:

• In direct key delivery mode (Delivery.KEY), the router will dispatch the event payload to the collectors with those keys; if a key matches no collector, the router will return an empty Ok result and the event payload will not be delivered.

• In topic delivery mode (Delivery.TOPIC), the router will dispatch the event payload to the collectors that are listening to topics matching the event topic(s); if a topic matches no collector, the router will return an empty Ok result and the event payload will not be delivered.

• In broadcast delivery mode (Delivery.BROADCAST), the router will send the event payload to all collectors associated with the collector queue.

For most use cases, the default router (SimpleRouter) should be sufficient and you would not need any custom configuration for this.

Note

The collector queue does not persist any event payloads. It’s the collector’s responsibility to persist event payloads if that is an application requirement. Therefore, if the application crashes, the event payloads inflight will also disappear.

E. Customizing CollectorQueue

The collector queue accepts various parameters to configure its behavior. The main parameters are:

• collectors

• min_consumers

• max_consumers

For simple cases setting values for the above is sufficient. The default setup assumes you are sending event payloads to one or more collectors and these all receive the same event payload.

The CollectorQueue supports the 3 types of asyncio.Queue (see QueueType):

• FIFO queue

• Priority Queue

• LIFO queue

To specify the queue type, set the queue_type parameter when creating the CollectorQueue:

from event_collector import CollectorQueue, QueueType


collector_queue = CollectorQueue(
    collectors=collectors,
    min_consumers=min_consumers,
    max_consumers=max_consumers,
    queue_type=QueueType.FIFO
)

# or

collector_queue = CollectorQueue(
    collectors=collectors,
    min_consumers=min_consumers,
    max_consumers=max_consumers,
    queue_type=QueueType.PRIORITY
)

# or

collector_queue = CollectorQueue(
    collectors=collectors,
    min_consumers=min_consumers,
    max_consumers=max_consumers,
    queue_type=QueueType.LIFO
)

When using a priority queue, you must set a priority when sending the event payload using the EventPublisher.send method:

collector_queue = CollectorQueue(
    collectors=collectors,
    min_consumers=min_consumers,
    max_consumers=max_consumers,
    queue_type=QueueType.PRIORITY,
    default_priority=1000,
)
publisher = collector_queue.get_publisher()

priority = 0
payload = Payload({"data": "payload_data"}, priority=priority)
await publisher.send(payload)

Note

The collector queue does not guarantee strict event ordering at the collector processing end, because event payloads may be ingested concurrently and this may result in a different ordering than the queue being used (FIFO, Priority Queue, or LIFO) for delivery to the collectors.

F. Using a Custom Router

The CollectorQueue uses a default router (SimpleRouter) that delivers event payloads according to the Delivery mode set in the Payload object. The default router can handle use cases where you are delivering to:

• a set of collectors directly (using Delivery.KEY);

• a set of collectors listening to “topics” (using Delivery.TOPIC);

• or, all collectors (using Delivery.BROADCAST).

If the default router logic does not fit your use case, you can write your own Router subclass and set the router parameter to the custom class when creating your CollectorQueue:

from event_collector import CollectorQueue, Payload, ResultList, Router


class CustomRouter(Router):

    async def handle_event(self, payload: Payload) -> ResultList:
        """"
        Custom routing logic here. Return value must be ResultList.
        """
        ...

 collector_queue = CollectorQueue(
     collectors=collectors,
     router=CustomRouter,
     min_consumers=min_consumers,
     max_consumers=max_consumers,
 )

G. Handling Return Values

When sending event payloads to the collector queue, the EventPublisher send() method will return a CollectorEvent object. The CollectorEvent will return one or more results depending on how the event payload was delivered. If the backend collectors have not completed processing the event payloads, the CollectorEvent will return None.

Getting the result from a CollectorEvent

The collector event has a get_result() method to fetch the return value from the collector (or collectors) that processed the event payload. If the result is not yet available. The get_result method will return None.

The wait() method will block until the result is available, then it will return the value from get_result. The return value of both wait and get_result is a ResultList.

from event_collector import Delivery, Payload

payload_data = {
    "data": "payload data",
}
delivery = Delivery.TOPIC
topics = ["sensor-data", "temperature-readings"]
payload = Payload(payload_data, delivery=delivery, topics=topics)

# The publisher.send method will return a CollectorEvent object when called
event = await publisher.send(payload)

# Fetch the ResultList
result_list = await event.wait()

# Or, use get_result if you know the event is already done
result_list = await event.get_result()

Getting the result from a ResultList

A ResultList is a wrapper for a list of Result objects. The reason for using a collection of return values is that the collector queue may deliver an event payload to more than one collectors in the backend. This can happen if the delivery mode is set to Delivery.TOPIC or Delivery.BROADCAST – or even to multiple collectors using Delivery.KEY. In these situations, the ResultList will contain the Result objects returned by all the collectors who processed an event payload.

Single Result

If the event payload was sent to only one collector, you can retrieve the result using the first() method, which returns the first item in the results list.

Example:

...

event = await publisher.send(payload)

# (1) Fetch the ResultList
result_list = await event.wait()

# (2) To get only one Result object, use the "first" method
result = result_list.first()

# (3) Check if result is Ok or Error
match result:
    case Error(_):
        # Handle exception
        ...
    case Ok(value):
        # value is the return value from the collector
        print(value)

Multiple Results

If the event payload was processed by more than one collector, you can retrieve the results using the ResultList iter() method, which returns a generator that will yield each Result.

Example:

...

event = await publisher.send(payload)

# (1) Fetch the ResultList
result_list = await event.wait()

# (2) To get all Result object, use the "iter" method
async for result in result_list.iter():
    # (3) Check each result to see if it is Ok or Error
    match result:
        case Error(_):
            # Handle exception
            ...
        case Ok(value):
            # value is the return value from the collector
            print(value)

Fire-and-forget mode

If your event processing flow is “fire-and-forget,” then you can ignore the return value of the EventPublisher.send method.

Example:

...

await publisher.send(payload)

Note

Direct key, topics, and broadcast delivery will not return an error if event payloads are not delivered to collectors. They return an empty Ok result. If acknowledgement is required after sending the event payload, use the Result return value as an indicator of successful delivery.

The collector queue guarantees “exactly once” delivery because it is using the internal asyncio.Queue in the same process as the application code.

H. Error handling

When running code as part of an asyncio.Task, return values and exceptions do not always “bubble up” to the caller in a clean and simple way, especially if an event payload is sent to multiple collectors.

In the collector queue, a collector always returns a Result object that indicates if the processing is Ok or an Error. It’s up to your event handler to decide on what Ok and Error results mean.

In general, Error should capture an exception that signifies a failure that prevented the event processing from reaching a “completed” state. In this scenario, a fault in the data being processed could be considered an Ok result but with a value indicating the fault. In this case, your application will need to create a data structure that allows your event handler to return information about the fault that has occurred. This may be an event that can be re-processed or retried, or it can be dropped, etc. How this is handled is dependent on the application use case.
